Tools and Fixture

HONING MACHINE TOOLS

#
#
Creative has been designed for cnc controlled high precision vertical honing machine(SSVA-550).This type honing machine specially suitable for All types of cylinder liner and Cylinder Blocks.

IMPORTANT FEATURES OF HONING MACHINE

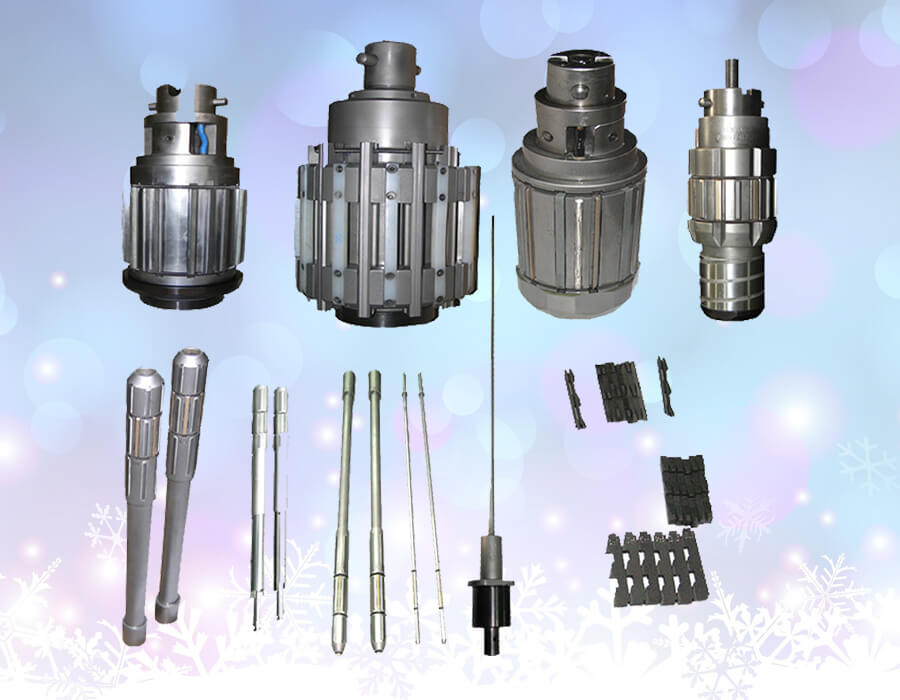

Creative offers a all types of Honing tools, Honing Mandrels and Honing Applications, our product diameter range is 4mm to 600mm in suitable for all honing ranges. Creative tools specially designed for high precision and cost effectiveness based. Our honing tools using for all types of cylinder liner, Sleeves, Cylinder block, Connecting rod, Gear, Shaft ext.

Honing Equipments specially designed for your high production honing application (precision bore finishing honing machine, ext). Creative design and manufacturing for as per customer requirements in different types of honing machine.

HONING MACHINE BASED MANUFACTURING FOR DIFFERENT TYPES OF HONING TOOL SERIES :-

  1. Single Stone Honing Tool (SS-Series)
  2. With Guide
  3. Without Guide
  4. Multi Stone Honing Tool (MS-Series)
  5. Single Expansion Honing Tool (MS-SE Series)
  6. Push Type
  7. N Series
  8. F Series
  9. Pull Type
  10. N Series
  11. F Series
  12. Double Expansion Honing Tools (MS-DE Series)
  13. Push Pull
  14. N Series
  15. F Series
  16. Push Push

Honing Tool Features

  1. Air sizing system monitoring your product Accuracy.
  2. Precision carbide shoes reduce a cycle time.
  3. Longer life honing tool.
  4. Create a high precision honing component.
  5. East to use.

Specification

  1. Honing Tool Diameter Range is 4 to 800mm.
  2. Stroking Length up to 600mm.

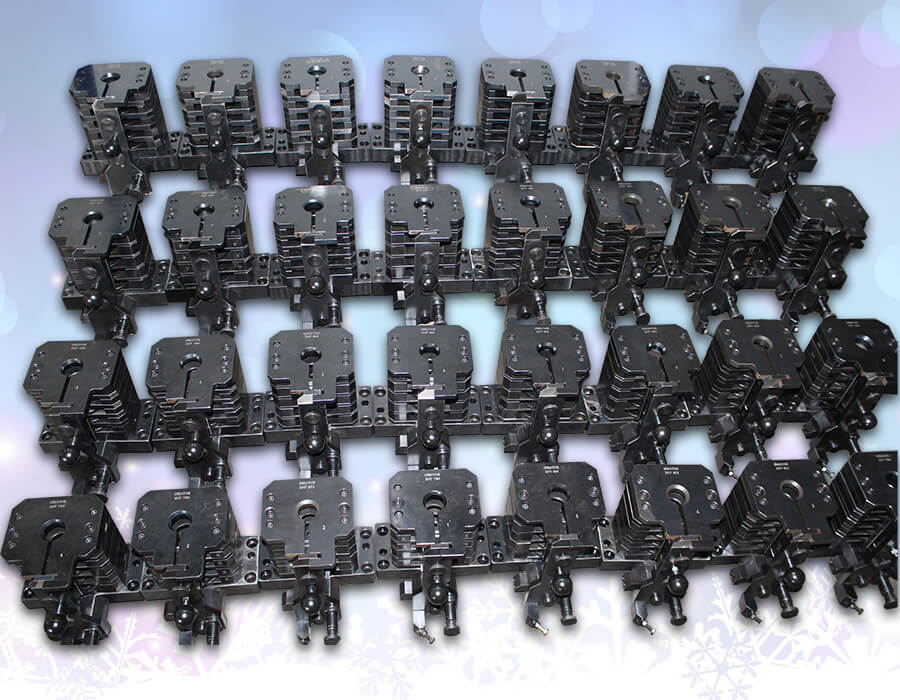

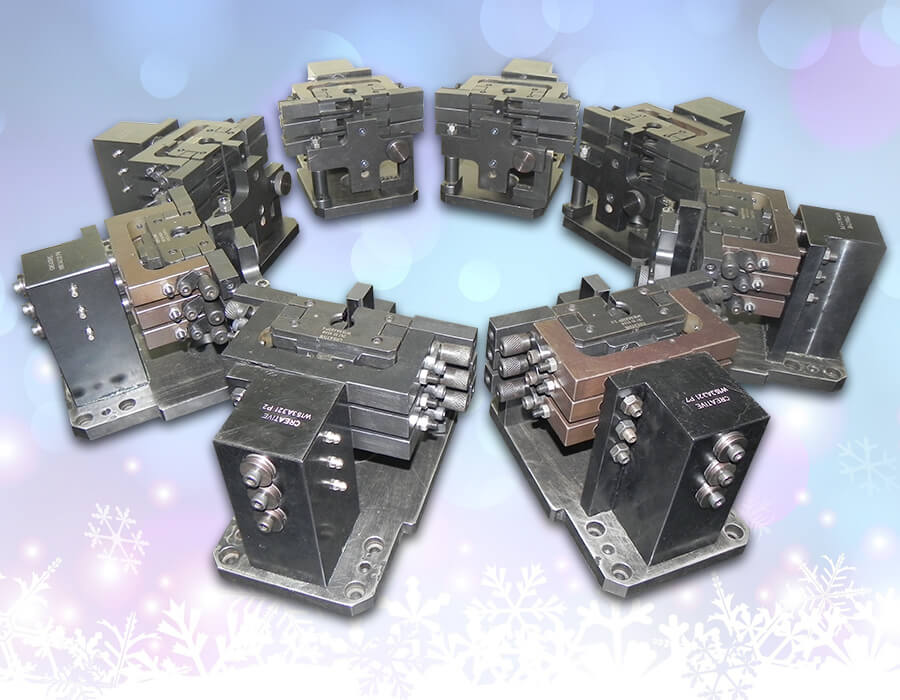

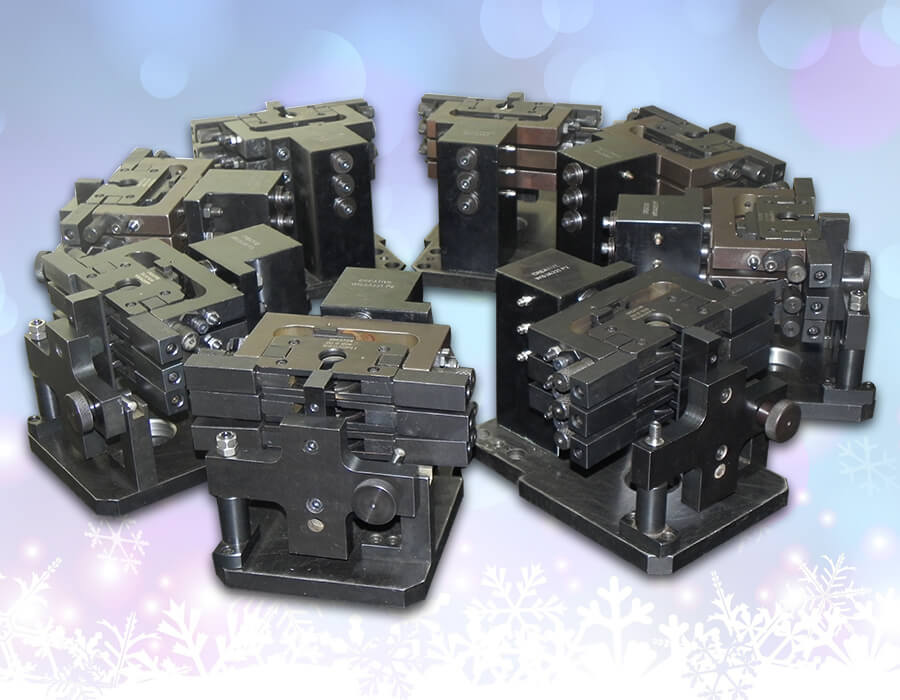

HONING MACHINE FIXTURES

Creative has been design and manufacture for high precision honing fixtures in Single and multi spindle honing machines. Simple arrangements to contain a component clamping and load/unload provisions can be offered on both vertical and horizontal honing machines. These fixtures used for single and multiple spindle Vertical and horizontal honing machines. Honing Fixtures specially designed for your high Precision bore finishing honing machine. Creative design and manufacturing for as per customer requirements in different types of honing fixtures

Creative Engineering is The Few. The Proud. The King

Part of our self-concept is to stay technologically one step ahead.
